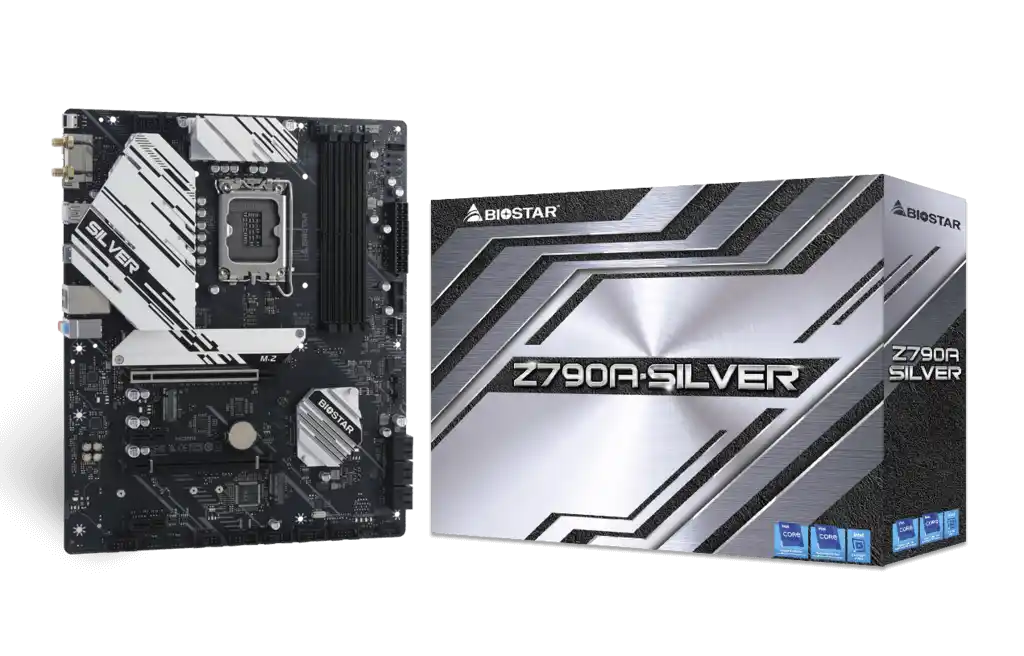

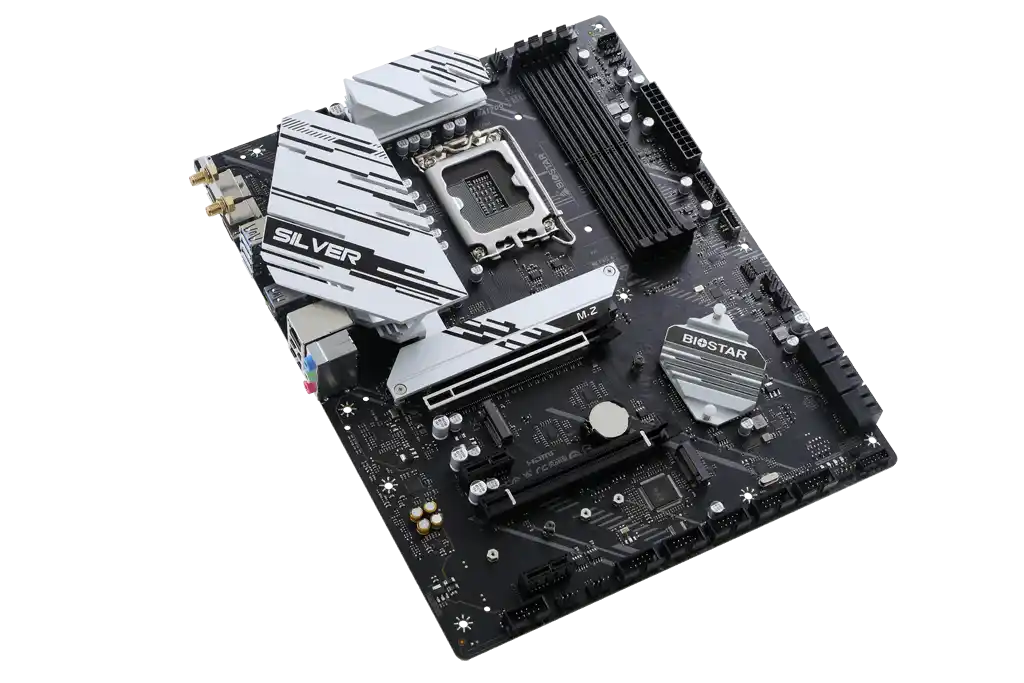

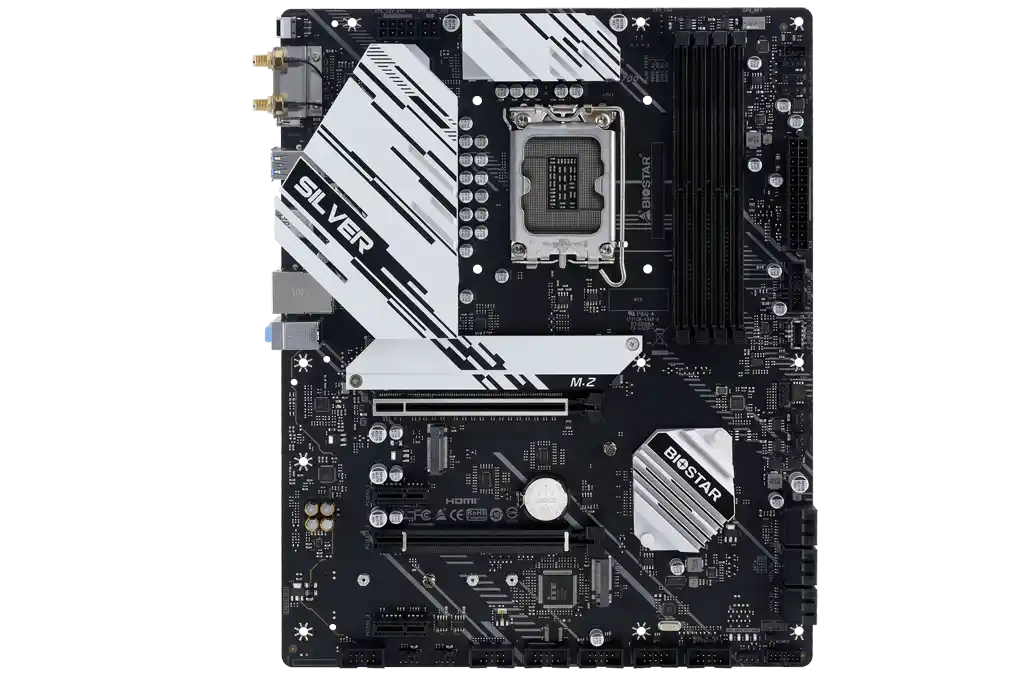

Matična ploča 1700 Biostar Z790A-Silver HDMI/DP/M.2
Šifra artikla:
4712960687127
Dostupnost:
Nema na stanju
- Proizvod iz grupe: Intel matične ploče
- Proizvođač: Biostar
- Dostupna količina: 0
| Čipset | Intel Z790 |
| Podržani procesori | Support for 12th / 13th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel® Pentium processors/ Intel Celeron processors in the LGA1700 package |
| Memorija | Supports Dual Channel DDR5 - 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC) / 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 4 x DDR5 DIMM Memory Slot, Max. Supports up to 128 GB Memory Each DIMM supports non-ECC 8/ 16/ 32GB DDR5 module Support Intel® Extreme Memory Profile (XMP) memory modules |
| Integrisana video kartica | Supports DX12 Supports HDCP |
| Skladištenje | -- Total supports 3 x M.2 socket and 6 x SATA III (6Gb/s) ports 6 x SATA III Connector (6Gb/s) : Supports AHCI, RAID 0, 1, 5, 10 & Intel® Rapid Storage Technology 1 x M.2 (M Key) Socket (M2M_CPU) Supports M.2 Type 2280 SSD module Supports PCI-E 4.0 x4 (64Gb/s) - NVMe SSD 1 x M.2 (M Key) Socket (M2M_SB1): Supports M.2 Type 2280 SSD module Supports PCI-E 4.0 x4 (64Gb/s) - NVMe SSD 1 x M.2 (M Key) Socket (M2_SB2): Supports M.2 Type 2242/ 2260/ 2280/ 22110 SSD module Supports PCI-E 4.0 x4 (64Gb/s) - NVMe/ AHCI SSD & SATA lll (6Gb/s)SSD |
| LAN | Realtek RTL8125B 10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability |
| Audio | ALC1220 7.1 Channels, High Definition Audio, Hi-Fi |
| USB | 2 x USB 3.2 (Gen2) Type-C port (1 on rear I/O and 1 via internal header) 5 x USB 3.2 (Gen2) port (5 on rear I/Os) 2 x USB 3.2 (Gen1) port (2 via internal header) 6 x USB 2.0 port (2 on rear I/Os and 4 via internal header) |
| Slotovi za proširenje | 2 x PCIe 3.0 x1 Slot 1 x PCIe 5.0 x16 Slot (x16 mode) 1 x PCIe 4.0 x16 Slot (x4 mode) |

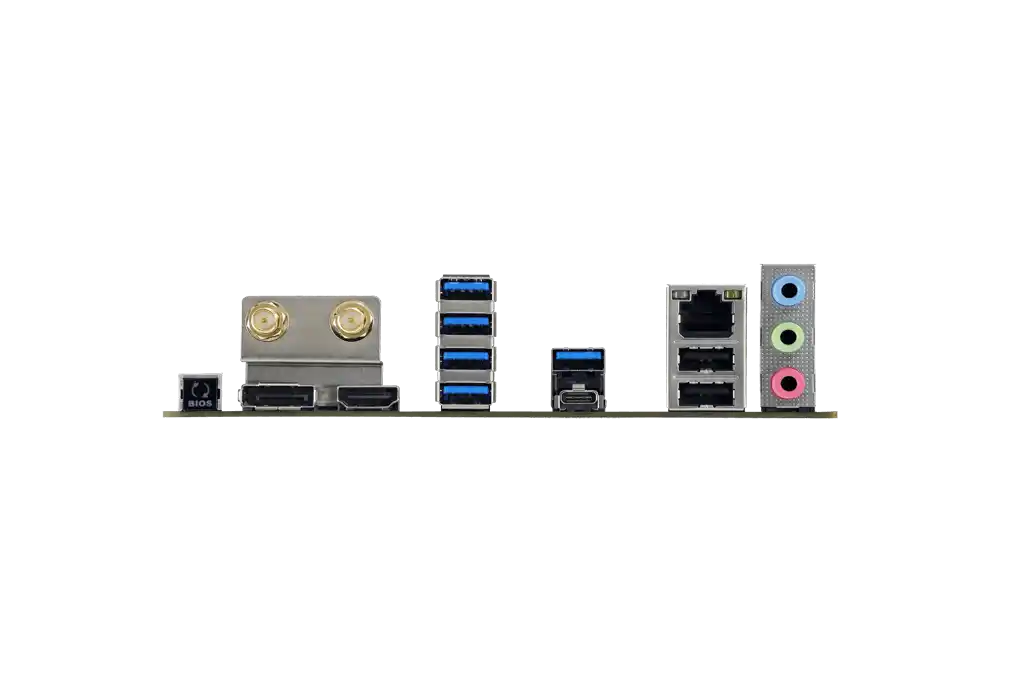

| Konektori na zadnjoj strani | 2 x WIFI Antenna Port 1 x HDMI Port (HDMI2.1) 1 x DP Port (DP1.2) 1 x USB 3.2 (Gen2) Type-C Port 5 x USB 3.2 (Gen2) Port 2 x USB 2.0 port 1 x LAN port 3 x Audio Jack 1 x SMART BIOS UPDATE Button 1 x SMART BIOS USB Port |
| Interne konekcije | 6x SATA III Connector (6Gb/s) 1x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel® CNVi 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x USB 3.2 (Gen2) Type C Header. 1 x 4-Pin Power Connector 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x CPU water cooling connector (CPU_OPT) 4 x System Fan Connectors 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header 1 x TPM Header 1 x Thunderbolt Header 2 x LED Header (5V) 1 x LED Header (12V) * M.2 (E key) Wi-Fi card is not provided |
| H/W MONITORING | CPU / System Temperature Monitoring Smart / Manual CPU Fan Control CPU/DDR Voltage Monitoring |
| Standard dimenzija matične ploče | ATX Form Factor Dimension: 30.5 cm x 24.4cm ( W x L ) |
| Operativni sistemi | Supports Windows Windows 10(64bit) / Windows 11(64bit) |
| BUNDLE SOFTWARE | BullGuard |
| Dodaci | 4 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x User Manual |
| Link proizvođača | https://www.biostar.com.tw/app/en/mb/introduction.php?S_ID=1088#overview |
| Model | Matična ploča 1700 Biostar Z790A-Silver HDMI/DP/M.2 |
| Robna grupa | Intel matične ploče |
| Uvoznik | |
| Zemlja porekla | |
| Prava potrošača | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
