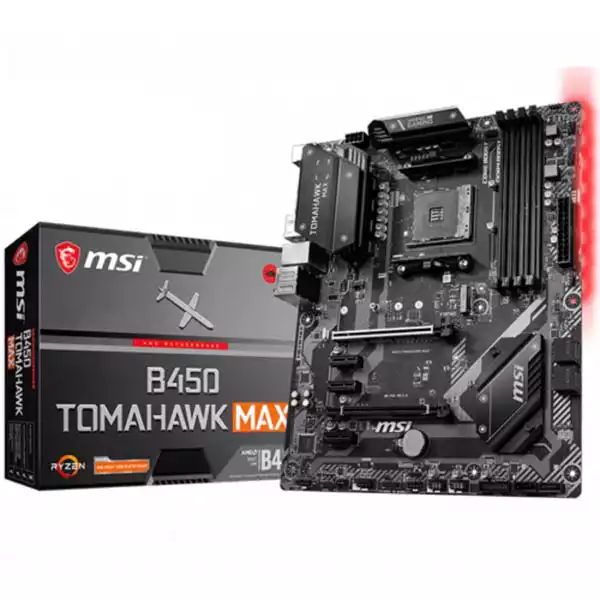

Matična ploča AM4 MSI B450 TOMAHAWK MAX DVI/HDMI/M.2
Šifra artikla:
4719072659226
Dostupnost:
Nema na stanju
- Proizvod iz grupe: AMD matične ploče
- Proizvođač: MSI
- Dostupna količina: 0
| Tip procesora | AMD |
| Podnožje | AMD® AM4 |
| Format ploče | ATX |
| Podržani procesori | Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4 |
| Podržana memorija | DDR4 |
| Memorija | 4 x DDR4 memory slots, support up to 64GB - Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) - For AMD Ryzen Gen3 (R5/R7/R9) - Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 4000/ 4133 MHz (by A-XMP OC MODE) - For AMD Other CPU - Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE) - Dual channel memory architecture - Supports non-ECC UDIMM memory - Supports ECC UDIMM memory (non-ECC mode) |
| Multi-GPU podrška | Supports 2-Way AMD® CrossFire™ Technology |
| Integrisana grafička karta | 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz1,2 - 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz *sa Ryzen procesorima koji imaju integrisanu Vega grafiku |
| Slotovi za proširenje | 1 x PCIe 3.0 x16 slot (PCI_E1) - 1st, 2nd and 3rd Gen AMD Ryzen™ processors support x16 speed - Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics processors support x8 speed - 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1 - 3 x PCIe 2.0 x1 slots1 - PCI_E4 will run x2 speed when installing devices in PCI_E2/ PCI_E3 slot. |
| Storage | AMD® CPU - 2 x SATA 6Gb/s ports1 - 1 x M.2 slot (Key M)1 - Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s - Supports 2242/ 2260 /2280/ 22110 storage devices AMD® B450 - 4 x SATA 6Gb/s ports |
| Mrežna karta | 1 x Realtek® 8111H Gigabit LAN controller |
| Zvučna karta | Realtek® ALC892 Codec 7.1-Channel High Definition Audio |
| USB | AMD® B450 - 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel - 1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel - 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector - 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) AMD® CPU - 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
| Konektori na zadnjoj strani | Flash BIOS Button - PS/2 Combo Port - USB 3.2 Gen1 - LAN Port - HD Audio Connectors - USB 2.0 Port - DVI-D Port - HDMI Port - USB 3.2 Gen2 Type A+C |
| Interni konektori | 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 6 x SATA 6Gb/s connectors - 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports) - 1 x 4-pin CPU fan connector - 1 x 4-pin water-pump-fan connector - 4 x 4-pin system fan connectors - 1 x TPM module connector - 1 x Front panel audio connector - 2 x System panel connectors - 1 x Chassis Intrusion connector - 1 x Serial Port connector - 1 x Clear CMOS jumper - 2 x 5050 RGB LED strip 12V connectors |
| Model | Matična ploča AM4 MSI B450 TOMAHAWK MAX DVI/HDMI/M.2 |
| Robna grupa | AMD matične ploče |
| Uvoznik | |
| Zemlja porekla | |
| Prava potrošača | Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača |
